Product:
48xGE port that support FE module and 10GE Uplink ports
Model:
S5735-S48S4XE-V2 (98012232)
Description:
S5735-S48S4XE-V2 (98012232)48xGE port that support FE module and 10GE Uplink ports
Price:
Regular price
$2,100.00 USD
Sale price
$2,100.00 USD
Regular price
$3,150.00 USD

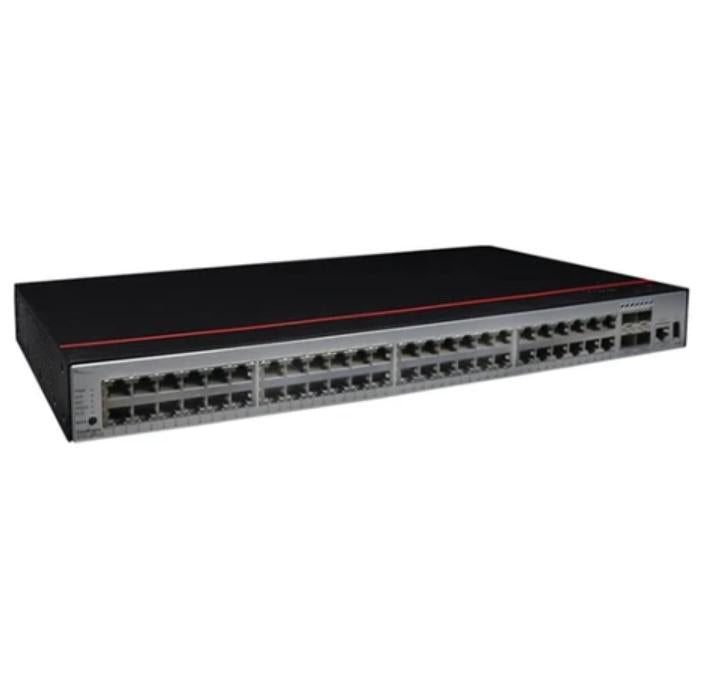

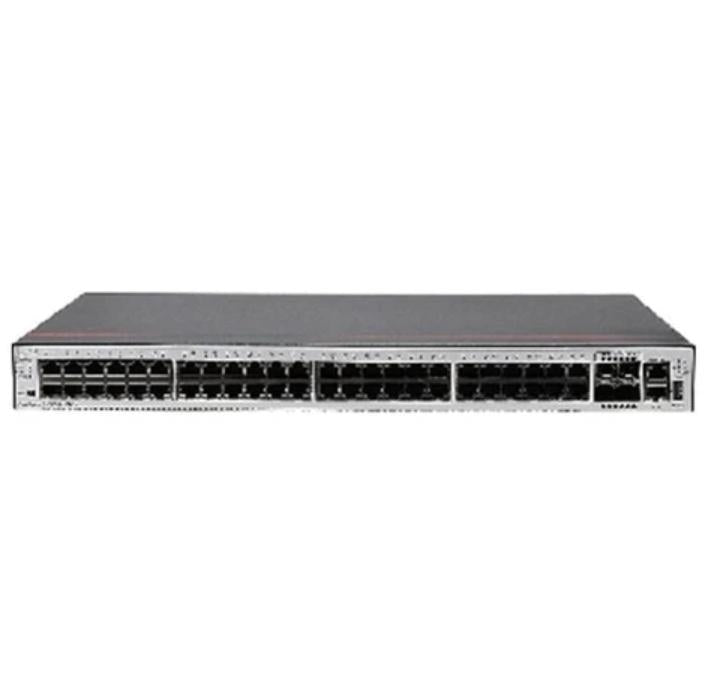

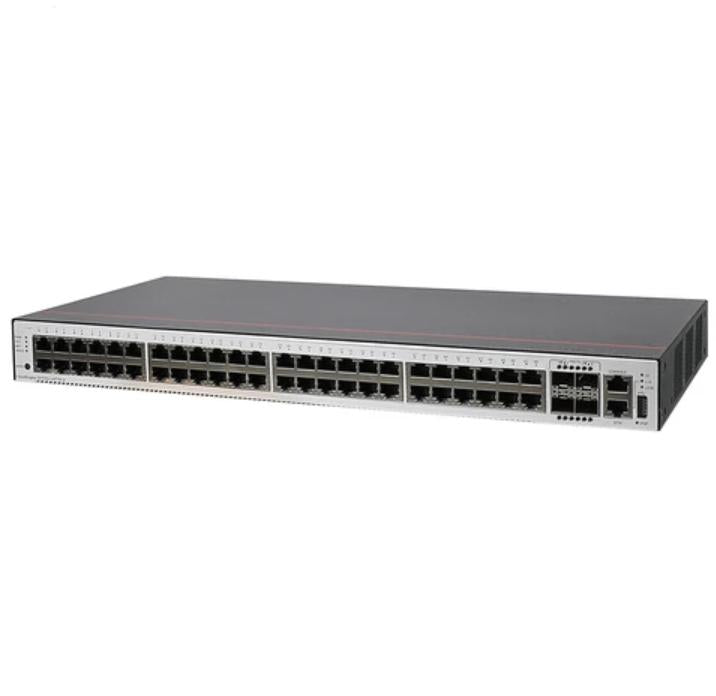

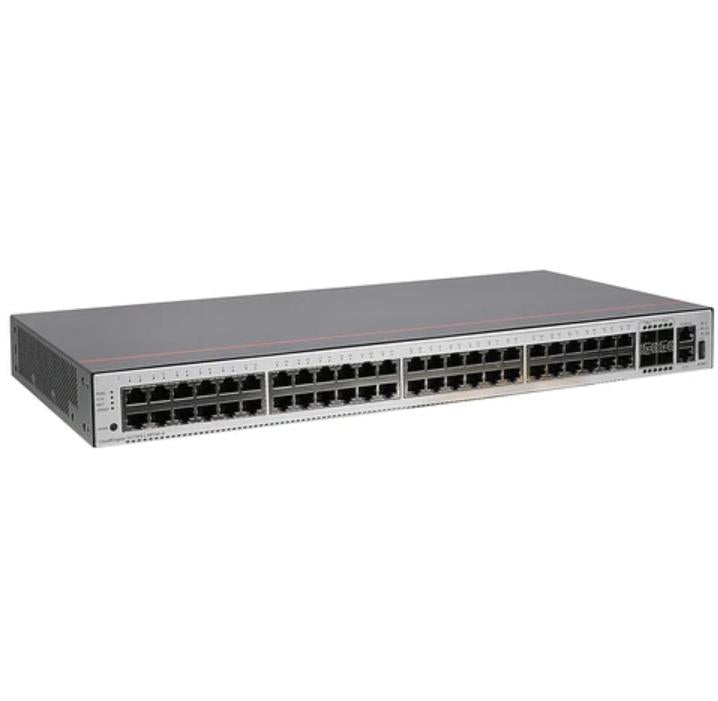

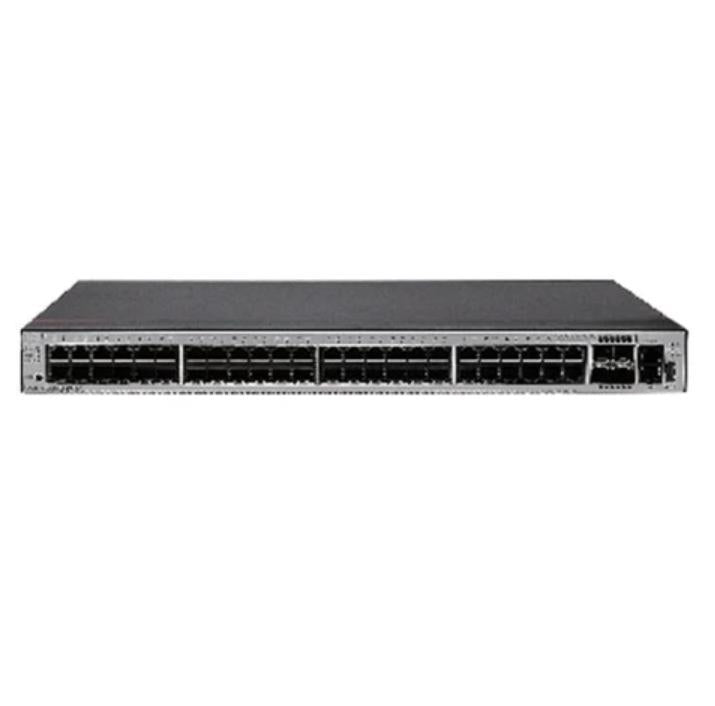

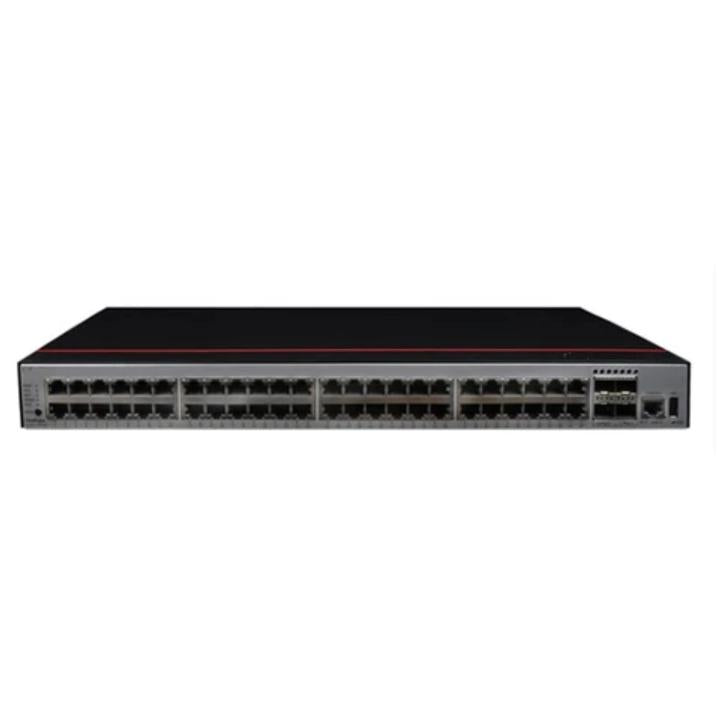

S5735-S48S4XE-V CloudEngine S5735 Series 48 Ports with 10G Uplink Switch
Basic information about the S5735-S48S4XE-V2 48xGE port that support FE module and 10GE Uplink ports DC power PDC1K2S12-CE
| Item | Details |
|---|---|
| Description | S5735-S48S4XE-V2 (48*GE SFP ports, 4*10GE SFP+ ports, 2*12GE stack ports, without power module) |
| Part Number | 98012232 |
| Model | S5735-S48S4XE-V2 |
| First supported version | V600R023C00 |
| Remarks |
|
Technical specifications of the S5735-S48S4XE-V2
| Item | Specification |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] |
Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.40 in. x 17.56 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 185.0 mm x 650.0 mm x 550.0 mm (7.28 in. x 25.59 in. x 21.65 in.) |
| Chassis height [U] | 1 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 5.2 kg (11.46 lb) |
| Weight with packaging [kg(lb)] | 7.1 kg (15.65 lb) |
| Typical power consumption [W] | 72.3 W |
| Typical heat dissipation [BTU/hour] | 246.69 BTU/hour |
| Maximum power consumption [W] |
|
| Maximum heat dissipation [BTU/hour] |
|
| Static power consumption [W] | 31.5 W |
| MTBF [years] | 78.95 years |
| MTTR [hours] | 2 hours |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 43.8 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 31.80 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 2 |
| Number of fans modules | 2 |
| Redundant power supply |
1+1 Power modules without fans and power modules with fans cannot be installed in the same chassis. |
| Long-term operating temperature [°C(°F)] | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] |
When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Devices cannot start when the temperature is lower than 0°C (32°F). |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | Pluggable power supply |
| Rated input voltage [V] |
|
| Input voltage range [V] |
|
| Maximum input current [A] | The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules. |
| Memory | 2 GB |
| Flash memory | Physical space: 1 GB |
| Console port | RJ45 |
| Eth Management port | Supported |
| USB | Supported |
| RTC | Not supported |
| RPS input | Not supported |
| Power supply surge protection [kV] |
|
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | Built-in |
| Heat dissipation mode | Air cooling for heat dissipation, intelligent fan speed adjustment |
| Airflow direction | Air intake from left, front, and right and air exhaust from rear |
| PoE | Not supported |
| Certification |
EMC certification Safety certification Manufacturing certification |
Applicable power modules: PAC80S12-CN PAC180S12-CN PAC600S12-PB PDC240S12-CN (available since V600R024C00 version) PDC1K2S12-CE When 1000BASE-X Ethernet optical ports use 25 or more GE optical modules with a distance of 40 km or longer, a power module with a minimum power of 180 W is required.
