VCPE MA5600T 64port VDSL2 over POTS H80DVCPE H806VCPE 023AAL huaweis VDPE VDPD VDMF VCMM VDPM VDQM

H806VCPE Specifications Board Description

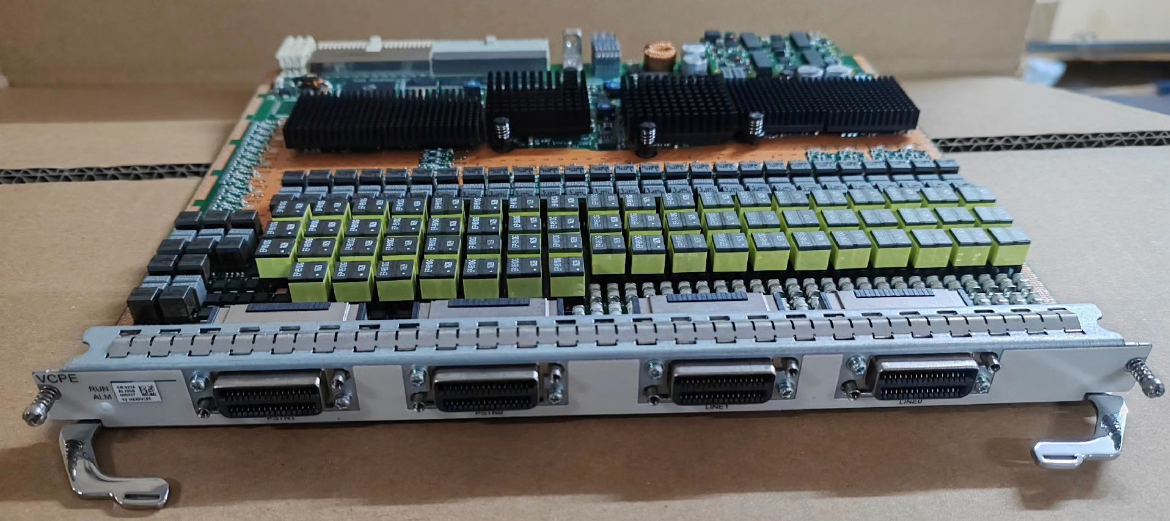

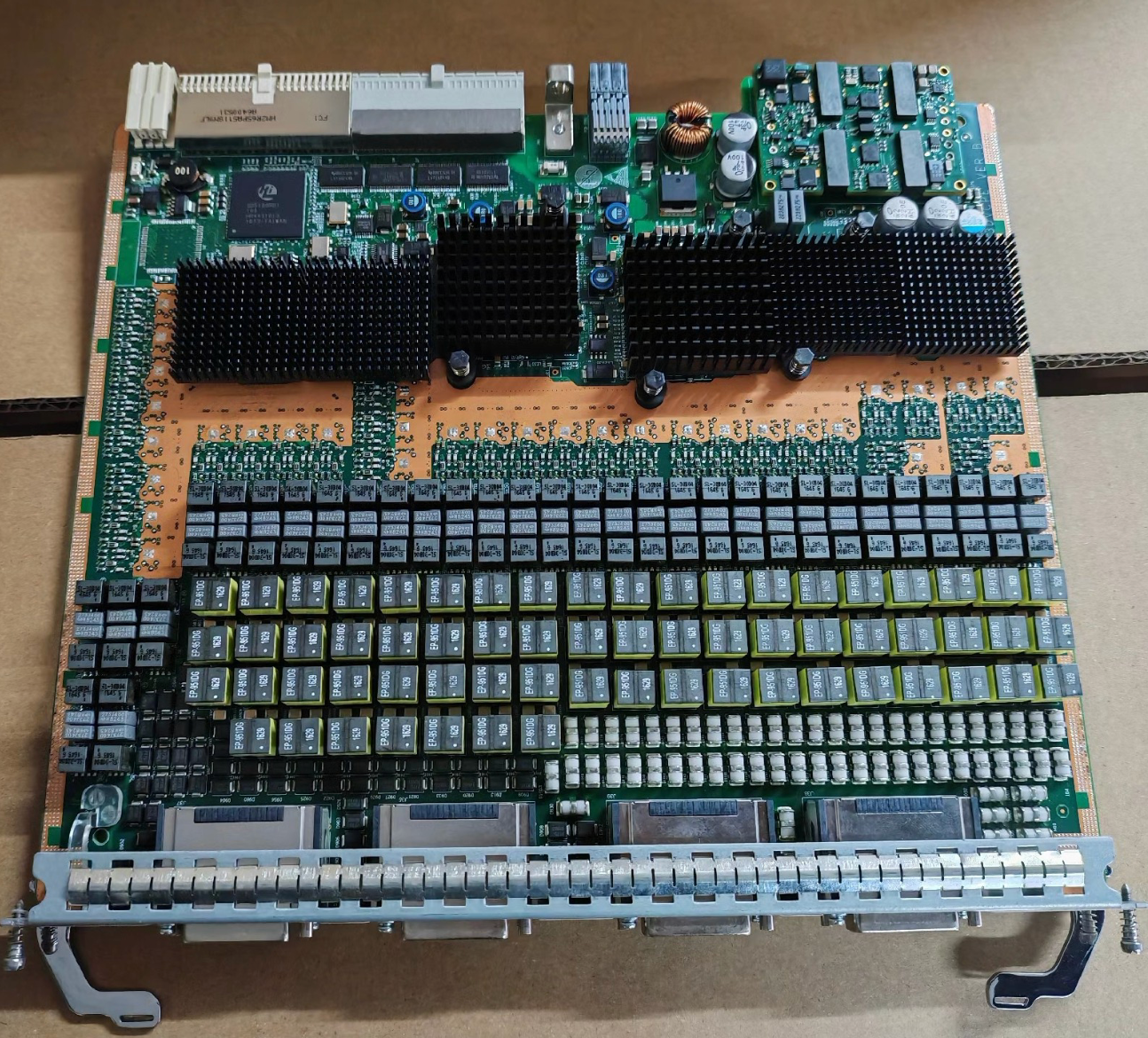

H806VCPE is a 64-port VDSL2 over POTS service board with built-in splitter. Using its VDSL2 port, the H806VCPE board works with the VDSL transceiver unit, remote terminal end (VTU-R) to provide 64 channels of VDSL2 access services.

Feature and Specifications

Please refer to "64-Channel VDSL2 Service Board Comparison".

Parameters

Please refer to "Power Consumption and Maximum Frame Size of Boards".

Working Principle

Figure 1 Working principle of the H806VCPE board

Front Panel Port

NOTICE:

When cables from the PSTN and LINE ports are routed to an outdoor environment, the MDF must be installed with a protective unit.

When cables from the LINE port are routed to the user side, the MDF must be installed with a protective unit.

The PSTN port must be connected to an MDF with a protective unit or a POTS device. Otherwise, when the LINE port is struck by lightning, energy inside the SPL board or unit fluctuates and overlaps, which may damage the LINE port.

Indicator

Pin Assignments

The pin assignments of LINE ports are the same as those of the PSTN ports. Table 1 describes the pin assignments of the PSTN0 port, and Table 2 describes the pin assignments of the PSTN1 port.
